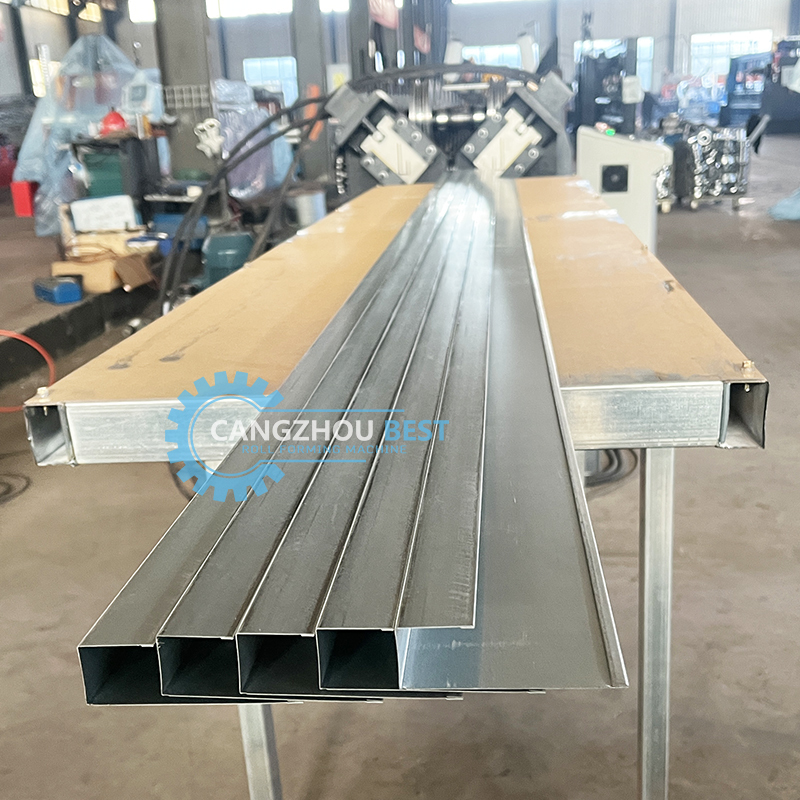

Double Line Stud&Track Steel Profile Cold Roll Forming Machine Customzied Machine
Working Flow:
Decoiler-----feeding-----roll forming------cutting-----finished product
Machine Component:
| No. |
Name |
Unit |
Qty |
| 1 |
Manual decoiler |
set |
1 |
| 2 |
forming machine |
set |
1 |
| 3 |
PLC control system |
set |
1 |
| 4 |
Hydraulic pump station |
set |
1 |
| 5 |
cutting device |
set |
1 |
| 6 |
Output table |
set |
1 |
Machine Specifications:
1. DECOILER
(1) Max. Width: 500mm
(2) Inner Diameter: Φ450 – Φ550 mm
(3) Out Diameter: 1500 mm
(4) Max. Loading Capacity: 3000 kgs
(5)Type:manual

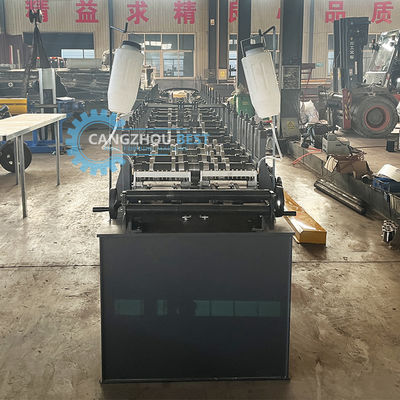

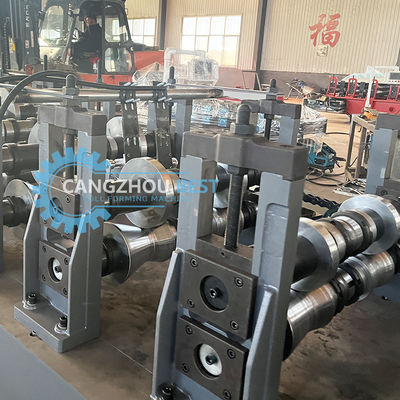

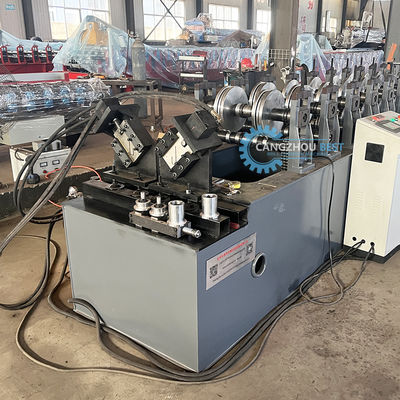

2. ROLL FORMING MACHINE
(1) Material Thickness: 0.5-1.0mm PPGI and GI
(2) NO. of roller Stations:14+14 groups
(3) Material for Rollers:Cr12 steel polished and coated with chrome HRC58-62°
(4) Material for shaft: high grade 45# steel polished and coated with chrome HRC58-62°
(5) Diameter of shaft: 60mm
(6) Frame panel : casting type
(7) Bottom frame: 36# H-section steel
(8) Motor Power: 5.5kw
(9)Driven type: chain
(10)Speed: 8-12m/min
3. CUT-OFF DEVICE
(1)Material for Cut-Off Modular:Cr12 steel after treatment
(2)Hardness for Heat Treatment:HRC58 – 62°
(3)Cut-Off Type: Mould Cutting
(4)Motor for Hydraulic Stand: 3kw
4.PLC CONTROL BOX
(1) Type: PLC Frequency Control System with touch screen
(2) PLC Brand: Delta
(3) Encoder Brand: Omron
(4)Length Error: ±2mm
(5)Language: English and Chinese
(6)Voltage: 380v/50HZ, 3Phase (it depends on customer requirement)
5. HYDRAULIC PUMP STATION
(1) Oil type: 46# hydraulic oil
(2) Pump brand: China brand
Warranty
① If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
② Without visiting, we will send you user manual and video to teach you to install and operate.
③If buyer needs our technician to go to your local factory,please arrange round trip tickets, food and hotel and everyday salary USD100, visa cost and necessary things.
